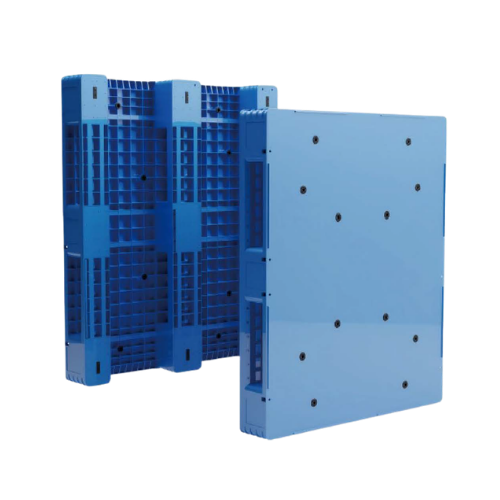

TTF Tech Plastic Pallet — Rackable, Recyclable, Built for Automation
TTF Tech Plastic Pallet is a high-performance rackable pallet designed for heavy-duty warehouse and industrial applications. Manufactured using advanced injection moulding technology with reinforced steel tubes, it delivers exceptional strength, durability, and long service life. Compatible with racking systems, conveyors, and ASRS, our plastic pallets help improve warehouse efficiency while reducing maintenance costs — and being made from recyclable PP or HDPE, they support your sustainability goals at the same time.
Product Specifications
FEATURES & ADVANTAGES
- Designed for heavy loads
- Racking capabilities
- Optimized to fit conveyors and automated systems
- Cost effective
- Easy washing and cleaning
- Meets GMA standards
- Environmentally friendly – 100% recyclable
- Customer logo by request
- Optional RFID/IOT tracking device to provide real time data

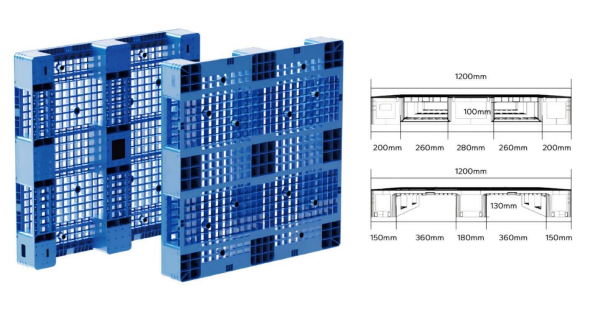

DS1210-16 SPECIFICATIONS
| Dimensions (mm) | 1200 * 1000 * 160 | ||
| Static Load | Dynamic Load | Edge Rack Load | |
| Load bearing capacity (kg) | 6000 | 1500 | 1500 |
| Entry | 4-Way | ||
| Material | PP/HDPE | ||
| Branding Solutions | Digital Printing / Laser Printing / Screen Printing / Hot Stamping / Labeling / RFID | ||
| Pallet Details | Top Deck | Open | |
| Bottom Support | 3 Runners | ||
| Reinforced (Top) | 4 metal tubes | ||
| Reinforced (Bottom) | 6 metal tubes | ||
| Production | Injection moulding | ||
| Transport | 40 HC | 450 PCS | |
FEATURES & ADVANTAGES
- Designed for heavy loads
- Racking capabilities
- Optimized to fit conveyors and automated systems
- Cost effective
- Easy washing and cleaning
- Meets GMA standards
- Environmentally friendly – 100% recyclable
- Customer logo by request
- Optional RFID/IOT tracking device to provide real time data

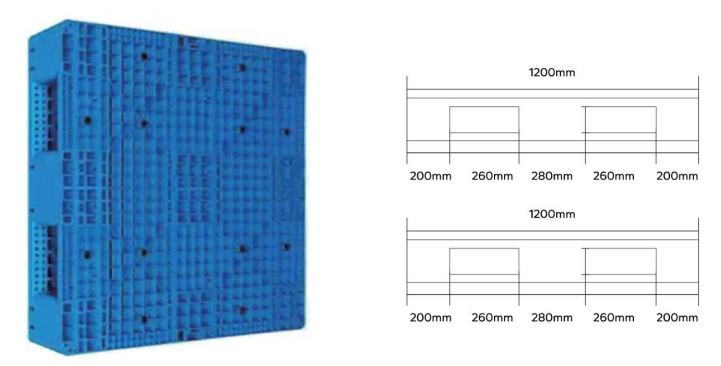

DS1212-16 SPECIFICATIONS
| Dimensions (mm) | 1200 * 1200 * 160 | ||
| Static Load | Dynamic Load | Edge Rack Load | |
| Load bearing capacity (kg) | 6000 | 1500 | 1500 |
| Entry | 4-Way | ||
| Material | PP/HDPE | ||
| Branding Solutions | Digital Printing / Laser Printing / Screen Printing / Hot Stamping / Labeling / RFID | ||
| Pallet Details | Top Deck | Open | |
| Bottom Support | 3 Runners | ||
| Reinforced (Top) | 4 metal tubes | ||
| Reinforced (Bottom) | 6 metal tubes | ||
| Production | Injection moulding | ||
| Transport | 40 HC | 389 PCS | |
FEATURES & ADVANTAGES
- Designed for heavy loads
- Racking capabilities
- Optimized to fit conveyors and automated systems
- Cost effective
- Easy washing and cleaning
- Meets GMA standards
- Environmentally friendly – 100% recyclable
- Customer logo by request
- Optional RFID/IOT tracking device to provide real time data
DS1212-15 SPECIFICATIONS
| Dimensions (mm) | 1200 * 1200 * 150 | ||
| Static Load | Dynamic Load | Edge Rack Load | |
| Load bearing capacity (kg) | 8000 | 2000 | 1500 |
| Entry | 4-Way | ||
| Material | PP/HDPE | ||
| Branding Solutions | Digital Printing / Laser Printing / Screen Printing / Hot Stamping / Labeling / RFID | ||
| Pallet Details | Top Deck | Open | |
| Bottom Support | Reversible | ||
| Reinforced (Top) | 6 metal tubes | ||
| Reinforced (Bottom) | 6 metal tubes | ||
| Production | Injection moulding | ||
| Transport | 40 HC | 270 PCS | |
FEATURES & ADVANTAGES
- Designed for heavy loads
- Racking capabilities
- Optimized to fit conveyors and automated systems
- Cost effective
- Easy washing and cleaning
- Meets GMA standards
- Environmentally friendly – 100% recyclable
- Customer logo by request
- Optional RFID/IOT tracking device to provide real time data

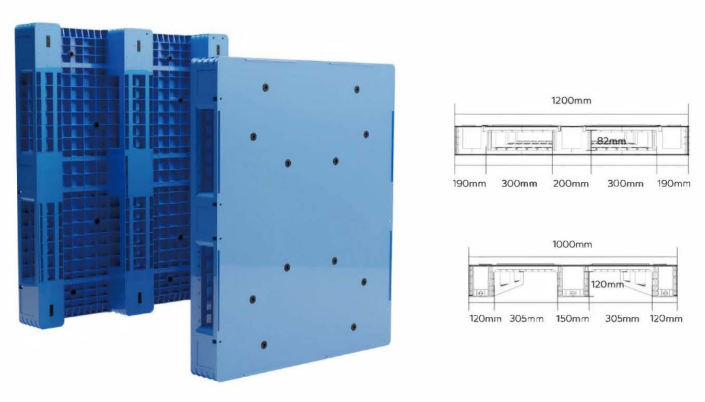

DS1210-15 SPECIFICATIONS
| Dimensions (mm) | 1200 * 1000 * 150 | ||
| Static Load | Dynamic Load | Edge Rack Load | |
| Load bearing capacity (kg) | 6000 | 1500 | 1500 |
| Entry | 4-Way | ||
| Material | PP/HDPE | ||
| Branding Solutions | Digital Printing / Laser Printing / Screen Printing / Hot Stamping / Labeling / RFID | ||
| Pallet Details | Top Deck | Close | |
| Bottom Support | 3 Runners | ||
| Reinforced (Top) | 4 metal tubes | ||
| Reinforced (Bottom) | 6 metal tubes | ||
| Production | Injection moulding | ||
| Transport | 40 HC | 450 PCS | |
Common Applications
- Automated Storage & Retrieval Systems (ASRS)
- Warehouse Racking Systems
- Conveyor Systems
- Manufacturing Facilities
- Distribution Centres
- Cold Storage Warehouses
- FMCG Warehouses
- Logistics & 3PL Operations
Why Plastic Over Wood: The Total Cost of Ownership Case
When deploying high-level warehouse automation, your choice of pallet directly impacts system uptime. Standard wooden pallets simply cannot cope with the strict tolerances of automated systems. For advanced ASRS, 4-way shuttles, and high-speed conveyors, our specialized automation-grade plastic pallets are the only viable choice.
Frequently Asked Questions
Why can't we use standard wooden / plastic pallets in warehouse automation?
Automated systems (like ASRS, 4-way shuttles, and conveyors) operate on strict, millimeter-level precision. Standard wooden pallets easily warp, splinter, or sag under heavy loads.
When a pallet loses its perfect shape, it causes major issues in an automated warehouse:
- Triggers Sensor Errors: Minor sagging or a loose wood splinter trips sensitive optical lasers and photo-eyes, forcing the system to trigger an emergency stop.
- Jams the Tracks: Deformed pallets can easily get stuck or jam inside tight racking tracks and shuttle rails.
- Affect Production: Every jam or false alarm requires manual intervention, leading to expensive system downtime and delayed order fulfilment.
To keep high-speed automation running smoothly without constant interruptions, using perfectly uniform, automation-grade plastic pallets is a necessity.
Are this type of plastic pallets suitable for ASRS?
Yes. TTF Tech Plastic Pallets are designed to work with ASRS, warehouse racking, and conveyor systems, providing stable and reliable performance in automated environments.
Can plastic pallets be used on pallet racking?
Yes. Our rackable plastic pallets are reinforced with steel tubes, suitable for high-bay racking applications while maintaining structural strength.
Can plastic pallets be customised?
Yes — we offer logo printing, RFID tags, laser marking, and other branding solutions to support warehouse identification and inventory management.
Why choose TTF Tech Plastic Pallets?
Durable industrial plastic pallets designed for warehouse automation, ASRS, pallet racking, and conveyor systems — combining high load capacity, long service life, and compatibility with modern logistics operations.
Still have questions? Contact our warehouse automation experts — we’re happy to walk through the details.
Related Warehouse Automation Solutions

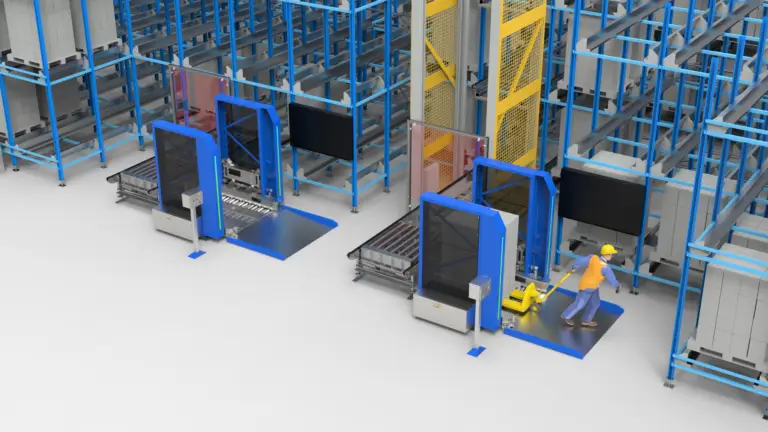

Vertical Logistics System
Ailift Vertical Logistics System
The Ailift Vertical Logistics System transports goods efficiently between...

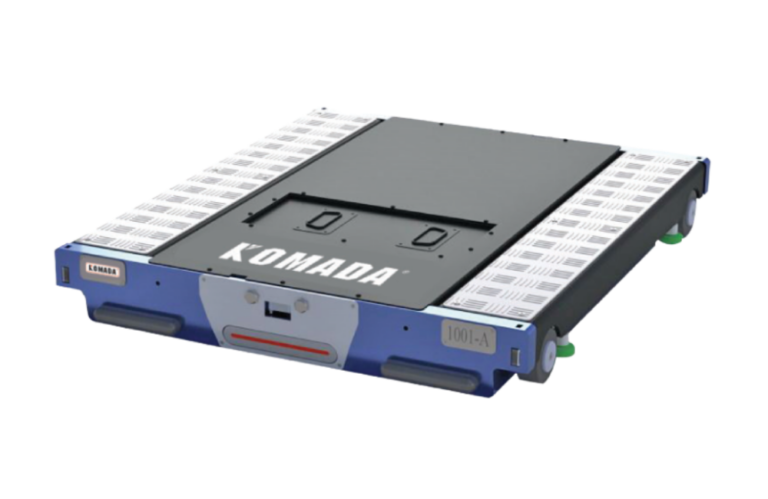

Komada Two Way Pallet Shuttle System
Komada Two-Way Pallet Shuttle System
The Komada Two-Way Pallet Shuttle System is a semi-automated storage...
Elevate Warehouse Management System
Warehouse Automation Case Studies
Elevate Warehouse Management System
Ready...
Globl PTR 4 Way Pallet Shuttle System
Warehouse Automation Case Studies
Globl PTR 4 Way Pallet Shuttle System
Automotive
Fast...

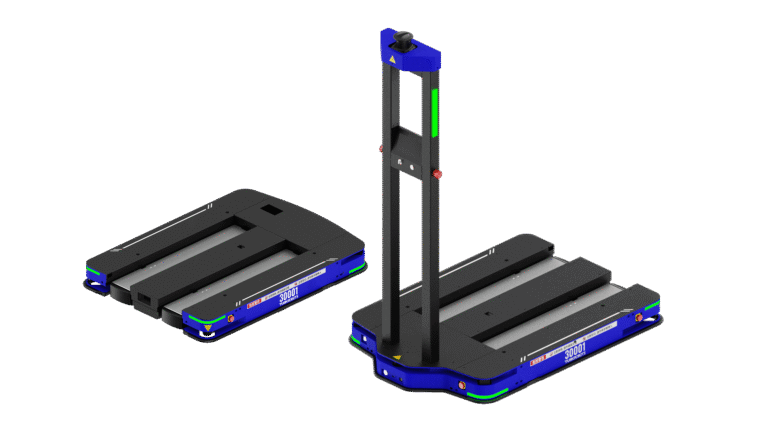

TuskRobots Autonomous Mobile Robot
