Globl PTR 4 Way Pallet Shuttle System
The Globl PTR 4-Way Pallet Shuttle System is a fully automated, high-density storage solution that moves pallets in four directions within the racking structure — horizontally and vertically — eliminating the need for forklifts inside the racking lanes. TTF Tech is the exclusive Malaysian partner for Shanghai-based Globl PTR, the pioneer of the four-way radio shuttle.
Intelligent dense storage solution
GLOBL PTR has brought together a formidable team of over 280 professionals, including distinguished senior engineers and experts, spanning R&D, manufacturing, planning, implementation, and after-sales support for ASRS. This dedicated team is adept at crafting customized, high-value solutions that address specific customer needs and challenges, particularly with the shuttle pallet racking system and its core component, the 4-way pallet shuttle. Their expertise is particularly beneficial in dense storage, line-side storage, and cold storage environments, where their solutions can effectively double the storage capacity of traditional manual systems. This makes GLOBL PTR the top choice for both new warehouse constructions and the modernization of existing facilities.
Strong Foundation In Research & Development
Certified Software
0
Technology Patents
0
Software Copyrights
0
TTF Globl PTR's Partner
TTF Globl PTR's Honors
MM Award
ISO12100
2010
Intelligent Technology Contribution Award
Honorary Credential
Manufacturing Supply Chain Quality Service Award
Technology Innovation Award
Gaogong Golden Globe Award
Intelligent Logistics Technology Excellent Case Award
High-tech Enterprise Certificate
14th CITLE Tech Gold Award
Intelligent Logistics Industry Award
3A Credit Enterprise Award
Key Features & Benefits
- 4 Multi-Directional Movement — improves warehouse flexibility and reduces travel time
- High-Density Storage — stores more pallets per footprint by reducing aisle requirements
- Seamless WMS & WCS Integration — real-time inventory control and fully automated operations
- High-Precision Positioning — accuracy of up to ±2mm, reducing product damage
- Intelligent Safety Protection — laser obstacle detection, pallet inspection, emergency stop, audible alarms
- Automatic Inductive Charging — reduces downtime, enables continuous operation
How the Pallet Shuttle System Works
1. Task Assignment
The shuttle receives instructions from the WMS or WCS.
2. Intelligent Navigation
The 4-way shuttle navigates autonomously to the designated location.
3. Automated Pallet Handling
Picks up and transports pallets between storage lanes without forklift intervention.
4. Storage or Retrieval
Pallets are stored or retrieved based on real-time warehouse requirements.
5. Continuous Operation
Automatic charging and intelligent scheduling maximise productivity.
Product Specification
Globl PTR
Horizontal Pallet Transport Robot
Room Temperature Series
PTR-HT | Pallet Transport Robot - Horizontal Thin
PTR-HS | Pallet Transport Robot - Horizontal Standard
PTR-HW | Pallet Transport Robot - Horizontal Weight

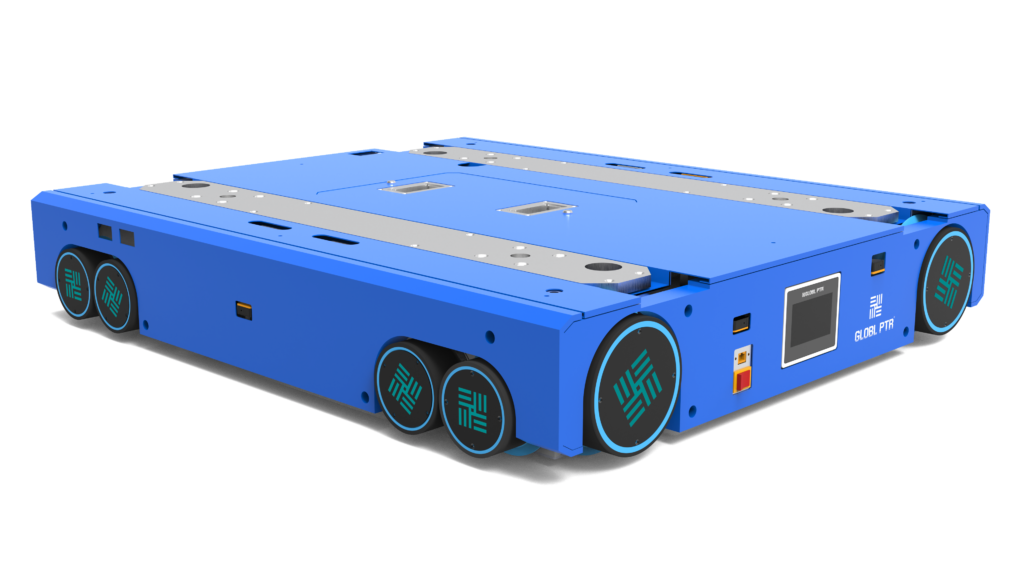

PTR-SW | Pallet Transport Robot - Super Weight

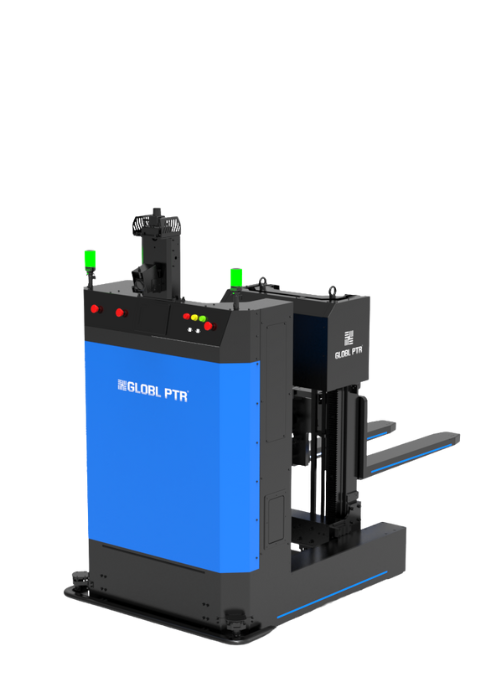

PTR-HGD | Pallet Transport Robot - Horizontal Ground Docking
| Model | PTR - HT | PTR - HS | PTR - HW | PTR - SW | PTR - HGD | |
|---|---|---|---|---|---|---|
|
Basic Parameter |
Name |
Thin |
Standard |
Weight |
Super weight |
Ground Docking |
|
Net Weight |
260KG |
300KG |
450KG |
650KG |
1.5T |
|
|
Rated Load |
0.8T |
1.2T |
2.0T |
2~4T |
1T |
|
|
Overall Dimensions |
1135 * 980 * 126 mm |
1135 * 980 * 126 mm |
1135 * 980 * 180 mm |
1500 * 1200 * 180 mm |
1530 * 1235 * 2090 mm |
|
|
Performance Index |
Driving Speed |
1.2 m/s |
1.2 m/s |
1.2 m/s |
0.5-1 m/s |
1.5 m/s |
|
Acceleration |
0.3 m/s² |
0.3 m/s² |
0.2 m/s² |
0.2 m/s² |
0.2 m/s² |
|
|
LIfting Time |
3 s |
3 s |
4 s |
6 s |
0.1 m/s (speed) |
|
|
Reversing Time |
3 s |
3 s |
4 s |
5 s |
– |
|
|
Positioning Accuracy |
±2 mm |
±2 mm |
±2 mm |
±2 mm |
±10 mm |
|
|
Battery Specifications |
Battery Type |
Lithium Iron Phosphate |
Lithium Iron Phosphate |
Lithium Iron Phosphate |
Lithium Iron Phosphate |
Lithium Iron Phosphate |
|
Battery Capacity |
≥ 2.8 kW·h |
≥ 2.8 kW·h |
≥ 2.3 kW·h |
≥ 2.8 kW·h |
≥ 2.8 kW·h |
|
|
Operation Hours |
6 – 8 h |
6 – 8 h |
6 – 8 h |
6 – 8 h |
6 – 8 h |
|
|
Charging Time |
≤ 2 h |
≤ 2 h |
≤ 3 h |
≤ 2 h |
≤ 2~3h |
|
|
Cycle Charge/ Discharge Times |
2000 cycles |
2000 cycles |
2000 cycles |
2000 cycles |
2000 cycles |
|
|
Charging Method |
Inductive Charging |
Inductive Charging |
Inductive Charging |
Inductive Charging |
Inductive Charging |
|
|
Apllication Temperature |
-10 ~ 45 ℃ |
-10 ~ 45 ℃ |
-10 ~ 45 ℃ |
-10 ~ 45 ℃ |
-10 ~ 45 ℃ |
|
|
Battery Level Indicator |
✔ |
✔ |
✔ |
✔ |
✔ |
|
|
Safety Protection |
Laser Obstacle Avoidance |
✔ |
✔ |
✔ |
✔ |
✔ |
|
Smoke Detection |
X |
X |
X |
X |
X |
|
|
Temperature Detection |
X |
X |
X |
X |
X |
|
|
Scram Button |
✔ |
✔ |
✔ |
✔ |
✔ |
|
|
Pallet Inspection |
✔ |
✔ |
✔ |
✔ |
✔ |
|
|
Audible Alarm |
✔ |
✔ |
✔ |
✔ |
✔ |
|
Globl PTR
Horizontal Pallet Transport Robot
Cold Storage Series
PTR-HCT | Pallet Transport Robot - Horizontal Cold Thin
PTR-HCS | Pallet Transport Robot - Horizontal Cold Standard
PTR-HCW | Pallet Transport Robot - Horizontal Cold Weight
PTR-HCGD | Pallet Transport Robot - Horizontal Cold Ground Docking
| Model | PTR - HCT | PTR - HCS | PTR - HCW | PTR - HCGD | |
|---|---|---|---|---|---|
|
Basic Parameter |
Name |
Thin |
Standard |
Weight |
Ground Docking |
|
Net Weight |
260KG |
300KG |
450KG |
1.5T |
|
|
Rated Load |
0.8T |
1.2T |
2.0T |
1T |
|
|
Overall Dimensions |
1135 * 980 * 126 mm |
1135 * 980 * 126 mm |
1135 * 980 * 180 mm |
1530 * 1235 * 2090 mm |
|
|
Performance Index |
Driving Speed |
1.2 m/s |
1.2 m/s |
1.2 m/s |
1.5m/s |
|
Acceleration |
0.3 m/s² |
0.3 m/s² |
0.2 m/s² |
0.2 m/s² |
|
|
LIfting Time |
3 s |
3 s |
4 s |
0.1 m/s (speed) |
|
|
Reversing Time |
3 s |
3 s |
4 s |
– |
|
|
Positioning Accuracy |
±2 mm |
±2 mm |
±2 mm |
±10 mm |
|
|
Battery Specifications |
Battery Type |
Lithium Iron Phosphate |
Lithium Iron Phosphate |
Lithium Iron Phosphate |
Lithium Iron Phosphate |
|
Battery Capacity |
≥ 2.8 kW·h |
≥ 2.8 kW·h |
≥ 2.3 kW·h |
≥ 2.8 kW·h |
|
|
Operation Hours |
6 – 8 h |
6 – 8 h |
6 – 8 h |
6 – 8 h |
|
|
Charging Time |
≤ 2 h |
≤ 2 h |
≤ 3 h |
≤ 2~3h |
|
|
Cycle Charge/ Discharge Times |
2000 cycles |
2000 cycles |
2000 cycles |
2000 cycles |
|
|
Charging Method |
Inductive Charging |
Inductive Charging |
Inductive Charging |
Inductive Charging |
|
|
Apllication Temperature |
-25 ~ 0 ℃ |
-25 ~ 0 ℃ |
-25 ~ 0 ℃ |
-25 ~ 0 ℃ |
|
|
Battery Level Indicator |
✔ |
✔ |
✔ |
✔ |
|
|
Safety Protection |
Laser Obstacle Avoidance |
✔ |
✔ |
✔ |
✔ |
|
Smoke Detection |
X |
X |
X |
X |
|
|
Temperature Detection |
X |
X |
X |
X |
|
|
Scram Button |
✔ |
✔ |
✔ |
✔ |
|
|
Pallet Inspection |
✔ |
✔ |
✔ |
✔ |
|
|
Audible Alarm |
✔ |
✔ |
✔ |
✔ |
|
Globl PTR
Vertical Pallet Transport Robot
Verbot
PTR-VS | Vertical Standard
PTR-VL | Vertical Self-loading and unloading
PTR-VM | Vertical Multipurpose
| Model | PTR - VS | PTR - VL | PTR - VM | |
|---|---|---|---|---|
|
Basic Parameter |
Name |
Standard |
Self-loading and unloading |
Multi-purpose |
|
Net Weight |
≤4.5t (Based on 8-meter high hoist) |
|||
|
Rated Load |
≤2.5t |
|||
|
Overall Dimensions |
2223* 2720 Customized according to project |
2223* 2720 Customized according to project |
1983* 2414 Customized according to project |
|
|
Performance Index |
Driving Speed |
0.6 m/s |
||
|
LIfting Time |
X |
X |
X |
|
|
Reversing Time |
X |
X |
X |
|
|
Positioning Accuracy |
±2 mm |
|||
|
Machine parameter |
Voltage |
AC380+AC220 |
||
|
Noise Value |
≤75 Decibe |
|||
|
Acceleration |
0.3 m/s² |
|||
|
Power |
12 kw |
|||
|
Control mode |
Servo |
|||
|
Apllication Temperature |
-25 ~ 45 ℃ |
|||
|
Safety Protection |
Laser Obstacle Avoidance |
X |
X |
X |
|
Smoke Detection |
X |
X |
X |
|
|
Temperature Detection |
X |
X |
X |
|
|
Scram Button |
✔ |
✔ |
✔ |
|
|
Pallet Inspection |
✔ |
✔ |
✔ |
|
|
Audible Alarm |
✔ |
✔ |
✔ |
|
Globl PTR
Others Accessories
Intelligent Inductive Charging System (PTR-llC)
Application Scenario
Horizontal Charging
Floor Standing Charging
Investment & ROI
Pricing depends on the number of shuttles, racking configuration, and WMS/WCS integration scope. Most clients see ROI within 2–3 years through increased storage density and reduced forklift labour — request a tailored quote based on your warehouse layout.
Globl PTR
Others Accessories
Transport Stacking (PTR-TS)
Application Scenario
Globl PTR
Others Accessories
Transport Lifting (PTR-TL)
Application Scenario
Frequently Asked Questions
What is a 4-way pallet shuttle system?
An automated storage and retrieval solution (ASRS) that moves pallets both horizontally and vertically within high-density racking, maximising storage capacity while improving pallet handling efficiency and reducing manual forklift operations.
How does a pallet shuttle system work?
The shuttle receives instructions from the WMS or WCS and automatically transports pallets to designated storage locations, enabling fast, accurate, fully automated pallet movement throughout the warehouse.
What are the benefits of a shuttle pallet racking system?
Increased storage density, reduced labour costs, improved safety, enhanced inventory accuracy, and optimised productivity through automated pallet handling.
What industries are suitable for a 4-way pallet shuttle system?
Manufacturing, logistics, food and beverage, cold storage, pharmaceuticals, retail distribution, and e-commerce warehouses needing high-density storage.
Can the Globl PTR 4-Way Pallet Shuttle integrate with WMS and WCS?
Yes, enabling real-time inventory visibility, automated task scheduling, and intelligent warehouse management.
Why choose TTF Tech for 4-way pallet shuttle solutions?
As Globl PTR’s exclusive Malaysian partner, TTF Tech combines our advanced mechanical storage hardware with the expertise of experienced, specialized Systems Integrators (SI).
By collaborating directly with top-tier software and automation integrators, we guarantee that our high-density 4-way pallet shuttles bridge flawlessly with your WMS, WCS, and enterprise systems. From initial system layout and software integration to professional installation, precise commissioning, and long-term after-sales support, TTF Tech delivers a fully synchronized, low-risk ASRS solution tailored to your storage capacity and throughput goals.
