4-Way Pallet Shuttle System for High-Density Warehouse Storage

Store more pallets in the same building, supplied with a local team in Malaysia for product questions and after-sales support.

Get a Pallet Shuttle Quote View Specifications

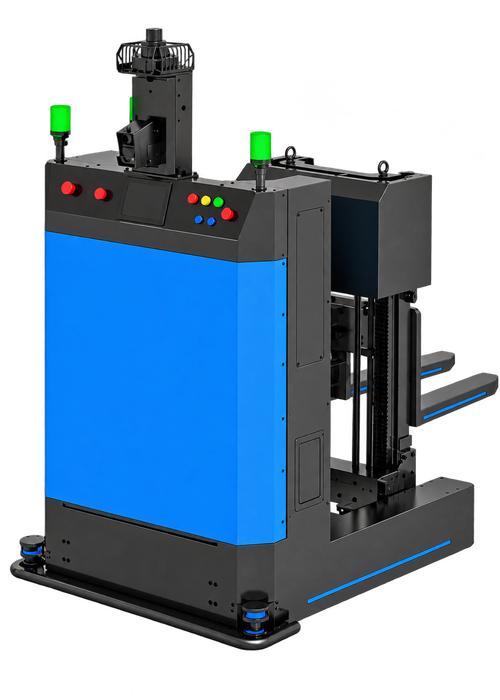

4-way pallet shuttle for high-density pallet racking

What we supply

4-Way Pallet Shuttles for Ambient and Cold Storage

TTF TECH supplies 4-way pallet shuttle systems for high-density pallet storage. Battery-powered shuttles carry pallets along and across the racking lanes in four directions. Paired with vertical lifts and control software, the system stores and retrieves pallets without forklifts entering the racking.

4 directions

Travel inside the racking

0.8 – 4 t

Rated load by model

±2 mm

Positioning accuracy

−25 °C

Cold-storage models, down to

Challenges

Storage Problems a 4-Way Shuttle Helps Solve

A 4-way shuttle removes most forklift aisles from the storage block, so more of the floor and height is used for pallets. It suits warehouses that are short of space, short of forklift drivers, or running cold rooms.

Warehouse is full, expansion is costly

Fewer aisles mean more pallet positions in the same footprint.

Forklift driver shortage

Shuttles handle storage and retrieval inside the racking.

Rack and pallet damage

±2 mm positioning, and no forklifts driving into the lanes.

Hard to staff cold rooms

Cold-storage models are rated for −25 °C to 0 °C.

One breakdown blocks a lane

Shuttles change lanes, so another shuttle can take over the task.

Nobody local to call after delivery

TTF TECH is your point of contact in Malaysia for product and after-sales questions.

Options

Find the Right Shuttle Configuration

A 4-way shuttle system is built from shuttles, racking, lifts and control software. Select each part around your pallets, stock profile and operating temperature.

Ambient shuttle series

Slim, standard, heavy-duty and super heavy-duty shuttles for −10 °C to 45 °C. Select by pallet weight and rack design.

Cold-storage shuttle series

Models rated for −25 °C to 0 °C, for chilled and frozen stores.

Lifts and supporting equipment

Vertical pallet lifts, charging stations and pallet stacking units complete the storage system.

Capabilities

Key Features

Four-direction travelShuttles move lengthwise and crosswise, and change levels by lift.

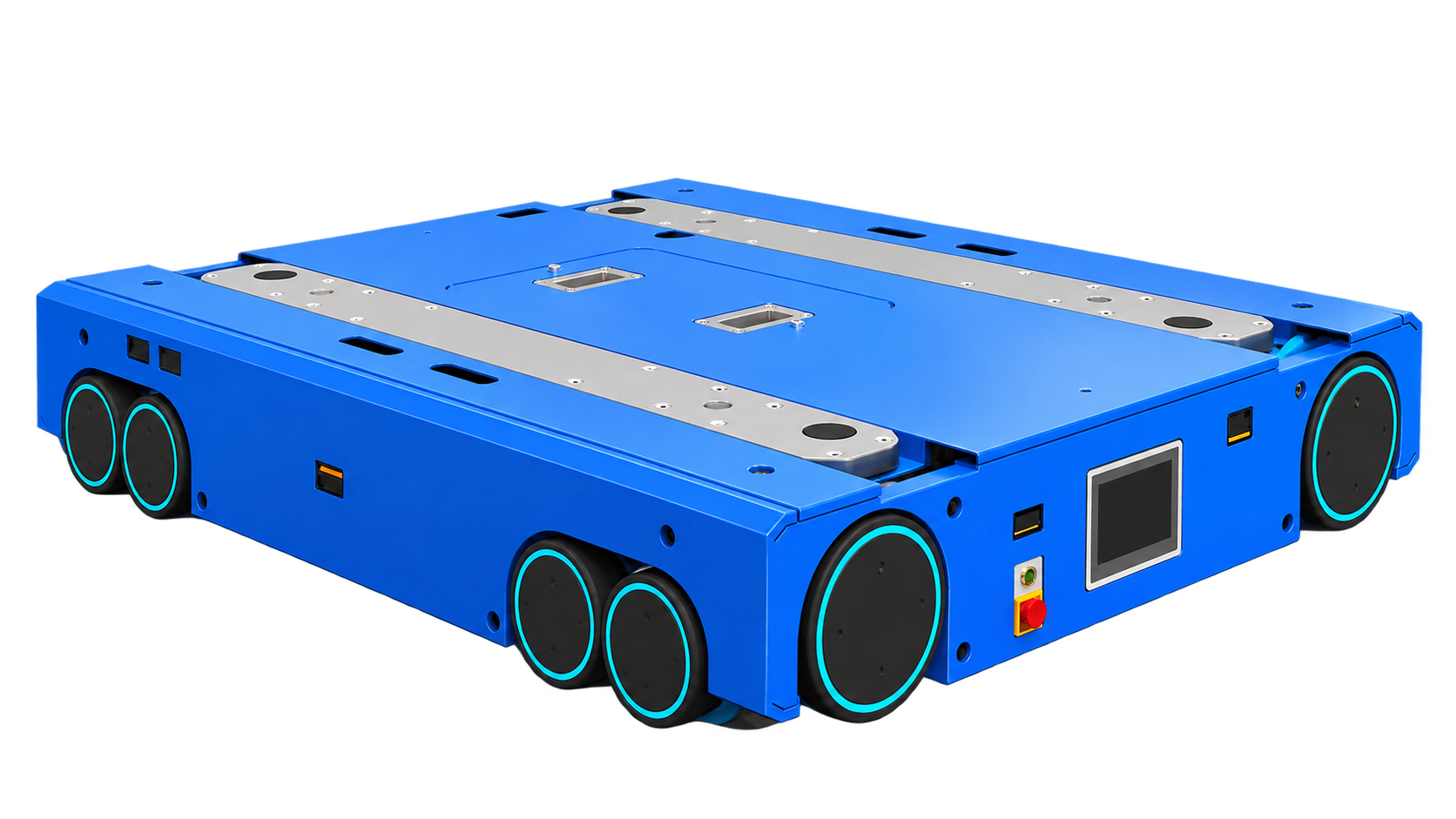

Rated loads from 0.8 t to 4 tSlim, standard, heavy-duty and super heavy-duty models.
±2 mm positioning accuracyOn standard models, for precise pallet placement.
Inductive chargingLithium iron phosphate batteries that charge inside the system.
Built-in safety protectionLaser obstacle detection, pallet detection, emergency stop and audible alarm.
Local point of contactProduct assistance and after-sales support in Malaysia.

Specifications

Technical Specifications

Horizontal pallet shuttle, ambient series, for −10 °C to 45 °C.

Parameter	Slim	Standard	Heavy-duty	Super heavy-duty	Ground-docking
Rated load	0.8 t	1.2 t	2.0 t	2 – 4 t	1 t
Net weight	260 kg	300 kg	450 kg	650 kg	1.5 t
Dimensions (mm)	1135 × 980 × 126	1135 × 980 × 126	1135 × 980 × 180	1500 × 1200 × 180	1530 × 1235 × 2090
Travel speed	1.2 m/s	1.2 m/s	1.2 m/s	0.5 – 1 m/s	1.5 m/s
Positioning accuracy	±2 mm	±2 mm	±2 mm	±2 mm	±10 mm
Battery capacity	≥ 2.8 kWh	≥ 2.8 kWh	≥ 2.3 kWh	≥ 2.8 kWh	≥ 2.8 kWh
Charging time	≤ 2 h	≤ 2 h	≤ 3 h	≤ 2 h	2 – 3 h

All ambient models: lithium iron phosphate battery, 6 – 8 h operation per charge, 2,000 charge cycles, inductive charging, laser obstacle detection, pallet detection, emergency stop and audible alarm.

Other models and supporting equipment

Type	Key figures
Cold-storage shuttle series	Slim, standard, heavy-duty and ground-docking models with the same ratings as the ambient series, for −25 °C to 0 °C
Vertical pallet lift	Rated load up to 2.5 t, speed 0.6 m/s, positioning ±2 mm, for −25 °C to 45 °C
Supporting equipment	Inductive charging stations, pallet stacking units and transfer lifts

Request the Full Datasheet

Comparison

4-Way Shuttle vs Conventional Pallet Racking

Selective racking gives direct access to every pallet but needs a forklift aisle for each row. A 4-way shuttle system removes most aisles and automates pallet movement, trading higher upfront cost for higher storage density and lower forklift dependence.

Factor	Selective racking	2-way shuttle	4-way shuttle
Storage density	Lowest	High	High
Forklift needed	For every move	To move the shuttle between lanes	Only at inbound and outbound points
Automation level	Manual	Semi-automated	Fully automated with WMS and WCS
Lane changes	Not applicable	By forklift	Automatic
SKU flexibility	Highest	Low, one SKU per lane	Medium to high
Upfront cost	Lowest	Medium	Highest

See the Two-Way Pallet Shuttle System

How it works

How a 4-Way Pallet Shuttle System Works

1
Task assigned
Your WMS sends a storage or retrieval order to the warehouse control system (WCS).
2
Shuttle dispatched
The WCS assigns a shuttle and plans its route.
3
Pallet handled
The shuttle lifts the pallet and travels through the racking.
4
Level changed
A vertical lift moves the pallet or shuttle between levels.
5
Stock updated
The location is reported back and stock is updated in the WMS.

Software and integration scope vary by project and are confirmed with the equipment supplier before purchase.

In operation

See the Shuttle System in Action

Requirements

What to Confirm Before Selection

Selection factor	What to confirm
Pallets	Size, type, condition, maximum weight and height
Stock profile	Number of SKUs and pallets per SKU
Throughput	Inbound and outbound pallets per hour
Building	Clear height, floor loading and column positions
Environment	Ambient or cold storage, and operating temperature
Software	WMS in use and the interfaces required

Local support

Local Support in Malaysia. Clear Project Roles.

TTF TECH helps customers evaluate equipment and software with relevant suppliers and system integrators. Design, integration, installation and commissioning responsibilities are agreed per project. Local support can include maintenance, training, an agreed SLA and spare parts planning, according to the selected equipment and service scope.

Talk to TTF TECH

FAQ

Frequently Asked Questions

How is a 4-way shuttle different from a 2-way shuttle?

A 2-way shuttle travels along one lane and needs a forklift to move it to another. A 4-way shuttle changes lanes by itself.

How much weight can a 4-way pallet shuttle carry?

From 0.8 tonnes to 4 tonnes per pallet, depending on the model.

Can it be used in cold storage?

Yes. Cold-storage models are rated for −25 °C to 0 °C.

How much does a 4-way pallet shuttle system cost?

It depends on the number of shuttles, racking size and software scope. Send us your layout for a quotation.

Does it work with a WMS?

Yes. It connects to a WMS through a warehouse control system.

Can a 4-way shuttle be fitted into existing racking?

Existing racks must be checked for compatibility with shuttle rails, loads and tolerances. Conversion is not assumed.

What decides how many shuttles we need?

The number of pallets moved per hour, the lane layout and the number of levels. Send us your throughput and layout for a recommendation.

Is local after-sales support available in Malaysia?

Yes. TTF TECH is based in Malaysia and is your local point of contact for product enquiries and after-sales support. The service scope is agreed for each project.
