OmniSort Automated Sortation System
Automated Sortation System is the essential sorting device for modern logistics, driving order fulfillment automation. This high-efficiency sortation machine processes and sorts a massive volume of goods across multiple tiers with enhanced speed and accuracy, which is crucial for the demanding e-commerce industry. By leveraging full automation, the system drastically cuts labor costs, boosts throughput, and optimizes valuable operational space, ensuring rapid and precise dispatch.
HC Robotic-Pioneer of High Speed 3D Warehouse Automation
HC Robotics remains steadfast in its commitment to innovating logistics automation equipment, focusing on intelligent warehousing and 3D sorting. This has led to exceptional products like “OmniSort,” an automated sortation system offering distinct advantages in warehousing logistics. Widely used in manufacturing, distribution, and terminal operations, these solutions are known for rapid implementation, low investment, and for delivering high returns through flexible allocation, achieving over 70% cost savings in logistics.
ISO Cert
Quality Guarantee
1500+
Sorting Efficiency
99.99%
High Accuracy
Max 8KG
Sort Capacity
≤ 7 days
Deployment Time
OmniSort's Partner

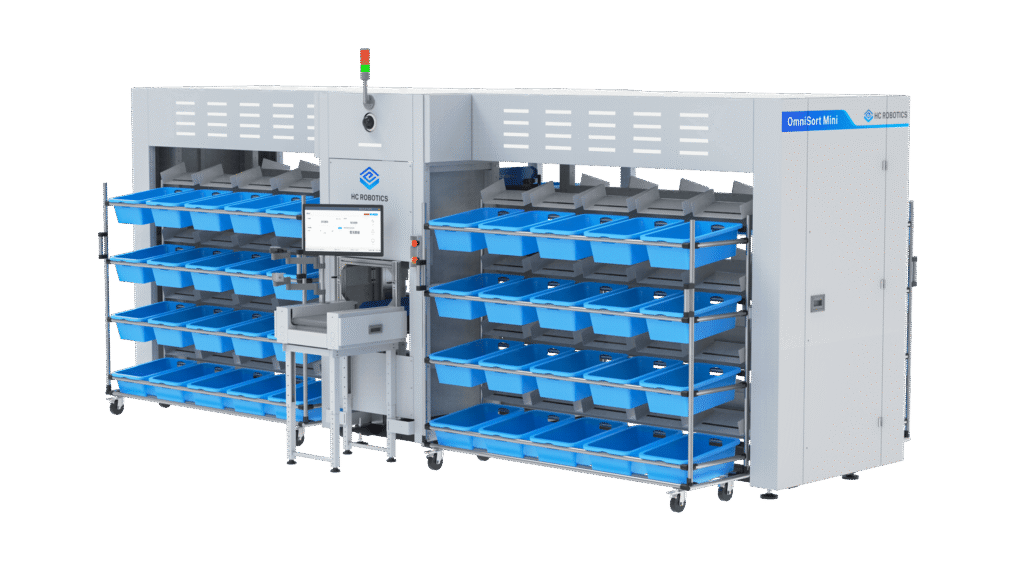

Omnisort Mini

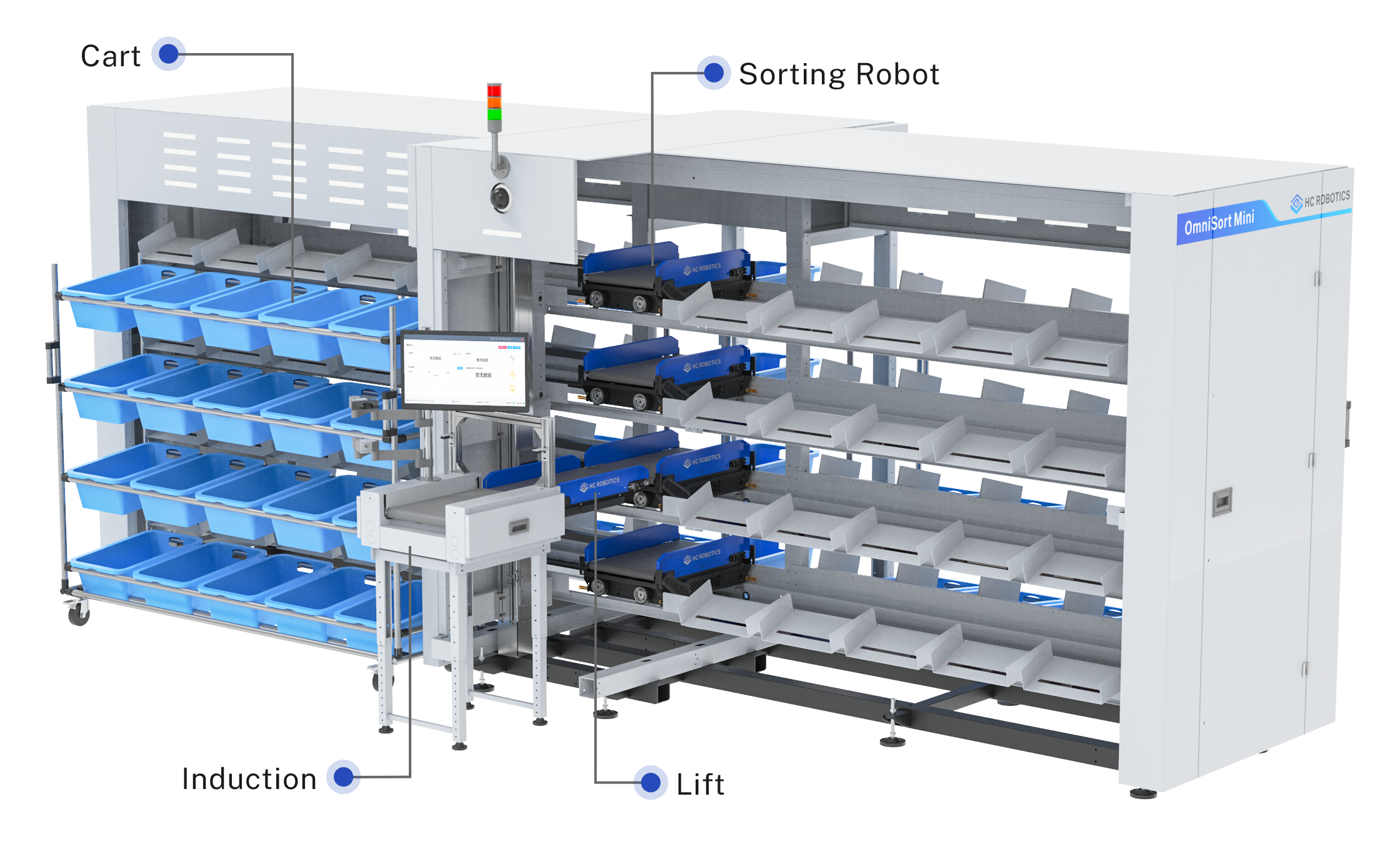

Parts and Features
Sorting Robot
800+
Sorting Efficiency
99.99%
High Accuracy
5kg
Sort Capacity
≤ 3 days
Deployment Time
- Small investment, quick results
- Compact design, saving warehouse space
- Automated operations to improve accuracy
- Improve labor efficienct and make sorting easier
| OmniSort Mini | ||||
|---|---|---|---|---|
|
Machine Parameter |
Dimension |
5.6m x 2.6m x 2.1m |
||
|
Robot Qty |
3 / 4 |
|||
|
Type |
Cart |
|||
|
Induction |
1 |
|||
|
Sorting Efficiency |
800+ pcs / hour |
|||
|
Destination |
60 / 80 |
|||
|
Sorting size |
400mm x 320mm x 200mm / 400mm x 320mm x 150mm |
|||
|
Robot Parameter |
Robot Type |
Sorting Robot (S) |
||
|
Dimension |
600mm x 500mm x 250mm |
|||
|
Load |
5kg |
|||
|
Communication Mode |
Wired |
|||
|
Navigation Mode |
Qr Code |
|||
|
Charge Mode |
Wired |
|||
|
Drive Mode |
Servo Motor |
|||
|
Material Hanling |
Roller Belt |
|||
Omnisort
Parts of OmniSort
Small Sorting Robot
Medium Sorting Robot
Large Sorting Robot
1500+
Sorting Efficiency
99.99%
High Accuracy
8kg
Sort Capacity
≤ 7 days
Deployment Time
- Intelligent 3D sorting system
- Systematic design that fully matches customers’ customized requirements
- Comprehensive interfaces that deeply match customers’s system
- Support complex order sorting wave sorting and line sorting
| OmniSort | ||||
|---|---|---|---|---|
|
Rack Parameter |
Dimension |
30mx5mx3.5m (Length 4-30m, Width 3.5m, Height 2-3.5m configurable) |
||
|
Robot Qty |
10+ |
|||
|
Type |
Tote / Cart / Flow Rack |
|||
|
Induction |
Configurable |
|||
|
Sorting Efficiency |
1500+ pcs / hour |
|||
|
Destination |
Configuration |
|||
|
Scaning |
Top Scan or Five Sided Scan |
|||
|
Robot Parameter |
Robot Type |
Sorting Robot (S)
|
Sorting Robot (M)
|
Sorting Robot (L)
|
|
Dimension |
623mm x 365mm x 257mm |
666mm x 573mm x 257mm |
965mm x 6633 x 311mm |
|
|
Load |
5kg |
5kg |
8kg |
|
|
Load Dimension |
400mm x 320mm x (5-300)mm |
500mm x 410mm x (5-300)mm |
750mm x 500mm x (5-300)mm |
|
|
Speed |
4m/s |
4m/s |
4m/s |
|
|
Communication Mode |
Wifi + RF |
Wifi + RF |
Wifi + RF |
|
|
Navigation Mode |
Encoder + Sensor |
Encoder + Sensor |
Encoder + Sensor |
|
|
Obstacle Detection |
Obstacle Detection Sesor |
Obstacle Detection Sesor |
Obstacle Detection Sesor |
|
|
Charge Mode |
Contact Rails & Supercaps |
Contact Rails & Supercaps |
Contact Rails & Supercaps |
|
|
Drive Mode |
Servo Motor |
Servo Motor |
Servo Motor |
|
|
Material Hanling |
Roller Belt |
Roller Belt |
Roller Belt |
|
OmniSort
Success Case
Cold Chain Food Sorting
Industry Case Studies
Project Introduction
This project mainly undertakes the tasks of sorting and dispatching frozen foods. Multiple sets of HC Robotics’ OmniSort equipment have been adopted in this project. These devices can not only greatly improve the accuracy and efficiency of order sorting, but also significantly reduce the reliance on manpower. Meanwhile, through optimizing the space utilization rate of the warehouse, the occupied area of the project site has also been reduced.
Project Highlight
Sorting efficiency 1500 pieces/hour
Sorting accuracy 99.99%
Use carton boxes as destinations after finished it can be packed and ship directly
Save 50% of labor and space
Project Introduction
The project improves the efficiency of order sorting, reduces the error rate, and enhances warehouse automation. The client introduced the “OmniSort” from HC Robotics to provide automated sorting for store replenishment, online store orders, and reverse logistics. The “OmniSort” of HC Robotics has effectively improved the level of warehouse automation and enhanced the service quality for the owner.
Project Highlight
Slope type destination
Enhanced barcode recognition configuration
Support B2B, B2C and return goods sorting
Multiple introduction conveyor
Shoes and garments
Industry Case Studies
Sorting Of 3C electronic Products
Industry Case Studies
Project Introduction
This project is used for sorting small 3C electronic products. In traditional manual sorting, not only is the efficiency low, but also the accuracy cannot be guaranteed. What’s more, the outer packaging of the products is prone to damage. Besides, due to the excessive staff turnover, the labor cost has increased. After the “OmniSort” of HC Robotics was put into use, these shortcomings have been greatly improved.
Project Highlight
Customized Induction conveyor of the package feeder
Reduce the damage rate of the electric products
Support various specifications of containers
The on-site deployment is short
